Size: 1880×900×1260(mm)
Technical parameter requirements for functional components and equipment:

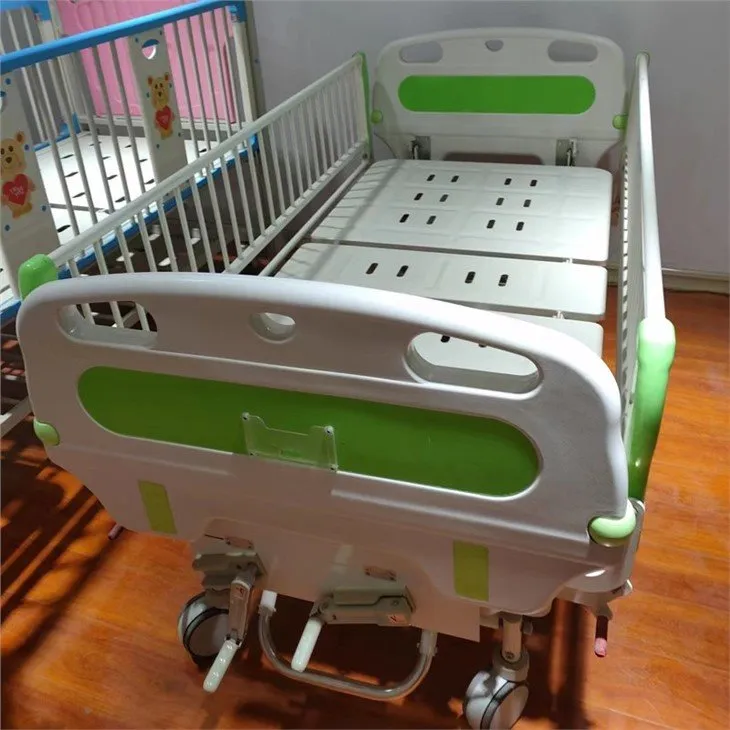

1. Product structure composition: bed body, bed panel, headboard and tail board, guardrail and other components. With saltwater rack, mattress and other accessories.
The bed frame adopts steel plate bending and welding forming, the product is beautiful. The concave air hole design on the surface of the spray bed has strong air permeability and can effectively prevent bedsores.
The bed panel is connected with sheet metal connectors, which makes the assembly more convenient. The headboard and tail board adopt PP blow molding, which is warm and beautiful and can effectively protect the bed body and the patient from the collision with the wall.
The fence can be raised and lowered guardrail, the protection spacing is less than 8 cm, and the height can be adjusted by 3 gears, which is convenient and safe. Each of the four casters has its own brakes.
Color selection: Pink and blue are available, and the color can be customized according to customer requirements.
2. The structure of each part of the product is as follows:
3. Product technical specifications and parameters
|
Main material |
Whole bed steel structure, fence type guardrail, PP blow molding headboard and tail board |
|
|
Boundary dimension |
1880mm×900mm×1260mm(±10 mm) |
|
|
Size of the bed |
1775mm×710mm(±10 mm) |
|
|
The height of the bed above the ground |
575mm(±10 mm) |
|
|
Wheel |
Diameter 125mm, 4 casters each with independent brakes |
|
|
Weight |
Net weight: 101KG Gross weight: 108KG |
|
|
Maximum load bearing |
200KG |
|
|
The back can be lifted |
Angle of inclination |
0-75°(±5°) |
|
The knees up |
Angle of inclination |
0-40°(±5°) |
|
The guardrail is adjustable in three gears Guardrail size: 1770×570mm(±10 mm) |
First gear(The guardrail is high above the bed surface) |
80mm(±10 mm) |
|
Second gear(The guardrail is high above the bed surface) |
310mm(±10 mm) |
|
|
Third gear(The guardrail is high above the bed surface) |
500mm(±10 mm) |
|
Product configuration list
|
No. |
Name |
Number |
|
1 |
Bed body |
1 |
|
2 |
Head board, tail board |
1 |
|
3 |
Wind the handle |
2 |
|
4 |
Single brake casters |
4 |
|
5 |
Guard-rails that can be raised up and down |
2 |
|
7 |
Mattress |
1 |
|
8 |
Infusion support |
1 |
