Description

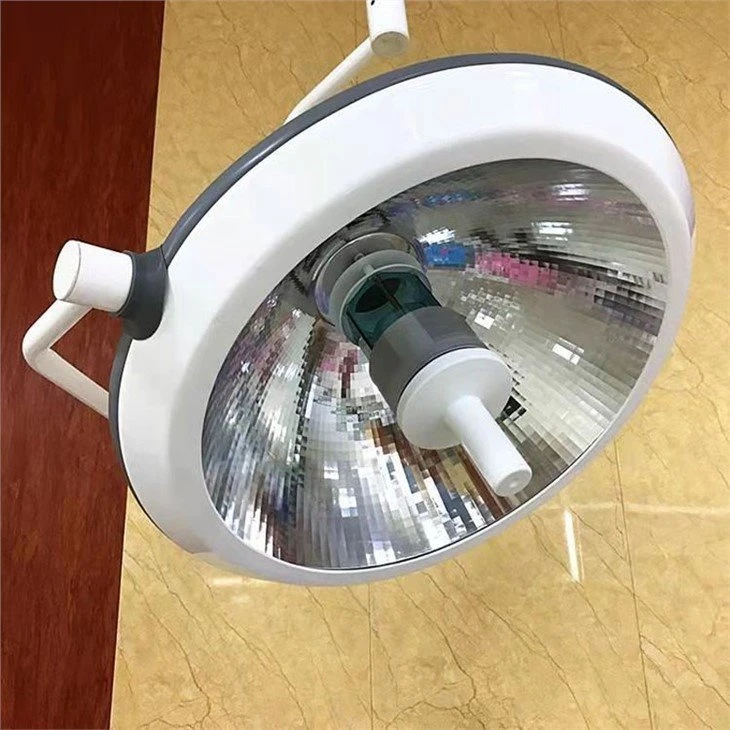

The Dual Head Integral Reflector Surgical Lamp is a lighting device designed specifically for operating rooms. The surgical lamp adopts a dual light source design, each of which is equipped with high-brightness LED lamp beads, which can provide sufficient and uniform light to ensure a bright and shadow-free surgical field. Its unique integrated reflector design projects light to the surgical area through a precisely calculated reflection path, reducing light scattering and glare, and improving the quality of surgical lighting. The lamp head of the surgical lamp can be flexibly adjusted, including horizontal rotation, vertical tilt, and relative angle adjustment between the lamp heads, ensuring that the light can be accurately focused on the surgical site to meet various lighting needs during surgery.
Features
Ensure that there is no blind spot in the surgical field
The illumination brightness provided by the Dual Head Integral Reflector Surgical Lamp is one of its core advantages. The illumination intensity of the Model MXZF700 is as high as 180,000 LUX, while the MXZF500 can also reach 160,000 LUX. This data not only far exceeds the standard of general operating room lighting equipment, but also ensures the ultimate clarity of the surgical field. High-brightness lighting can penetrate deep tissues of the surgical site, allowing doctors to accurately judge the structure and details of the surgical site, thereby reducing surgical time and improving the success rate of the operation. At the same time, high brightness can also reduce shadows in the surgical area to ensure that there are no blind spots in the surgical field.
Stable color temperature
The stability of color temperature is crucial for surgical lights. The color temperature of the Dual Head Integral Reflector Surgical Lamp is controlled within the range of 4300±500K, which is close to natural light and can truly restore the color of tissues. Stable color temperature helps doctors accurately judge the health status of tissues during surgery and avoid misjudgments caused by color differences. In addition, stable color temperature can also reduce the visual fatigue of doctors under long-term surgery and improve the precision and safety of surgical operations. This is especially important for complex surgeries that require long-term, high-precision operations.
Flexible dimming and precise focusing
The 1-100-level brightness adjustment function of the Dual Head Integral Reflector Surgical Lamp provides doctors with great flexibility. Doctors can freely adjust the lighting intensity according to the specific needs of the operation. At the same time, the diameter of its dimming spot is between 100-300mm, which can accurately focus on the surgical area and reduce the interference of the surrounding environment. This design not only helps doctors better observe the surgical site, but also improves the efficiency and success rate of the operation. For operations that require delicate operations, such as ophthalmology and neurosurgery, the precise focusing function is particularly important.
Fast switching function
The main and auxiliary bulbs of the Dual Head Integral Reflector Surgical Lamp switch in no more than 0.1 seconds. This speed ensures that the surgical lamp can quickly restore lighting under any circumstances, avoiding lighting interruptions during surgery. The fast switching function not only improves surgical efficiency, but also ensures the safety of surgery. In an emergency, if the main bulb suddenly goes out, the auxiliary bulb can immediately take over the lighting task to ensure the smooth progress of the operation.
|
Technical Specification |
||
|
Model |
MXZF700 |
MXZF500 |
|
Illumination(LUX) |
180000 |
160000 |
|
Color Temp(K) |
4300±500 |
4300±500 |
|
Dimming spot(mm) |
100-300 |
100-300 |
|
Lighting Depth(mm) |
≥1200 |
≥1200 |
|
Brilliance control |
1-100 |
1-100 |
|
Color rendering index CRI |
≥97% |
≥97% |
|
Color reduction index RA |
≥97% |
≥97% |
|
LED Bulb Life Span(h) |
≥1500 |
≥1500 |
|
The light bulb power |
150W |
150W |
|
Main and auxiliary light bulb switching time |
≤0.1seconds |
≤0.1 seconds |
|
Install height(mm) |
2800-3000 |
2800-3000 |
FAQ
Q: What are the main advantages of the Dual Head Integral Reflector Surgical Lamp?
A: The surgical shadowless lamp adopts a dual-head design to provide a wide and uniform lighting area. The overall reflection technology ensures that the light is shadowless and improves the clarity of the surgical field.
Q: Is the brightness of the surgical shadowless lamp adjustable?
A: Yes, the shadowless lamp is equipped with a brightness adjustment function. The doctor can freely adjust the light brightness according to the needs of the operation to ensure visual comfort during the operation.
Q: What effect does the color temperature of the shadowless lamp have on the operation?
A: The shadowless lamp adopts a color temperature close to natural light to reduce eye fatigue for patients and doctors, while ensuring the color reproduction of the surgical site and improving surgical accuracy.
Q: What is the reflector material of the surgical shadowless lamp?
A: The reflector is made of high-purity aluminum and is precisely polished to ensure efficient reflection and uniform distribution of light.
Q: Does the shadowless lamp have a disinfection function?
A: The outer shell of the shadowless lamp is made of easy-to-clean and disinfect materials, and supports a variety of disinfection methods to ensure the sterility of the surgical environment.
Q: Can the lamp head of the surgical shadowless lamp be rotated?
A: Yes, the lamp head has an all-round rotation function. The doctor can flexibly adjust the lighting angle according to the surgical site to ensure that there is no blind spot in the surgical field.
Q: What is the service life of the shadowless lamp?
A: The use of high-quality LED light source ensures that the shadowless lamp has an ultra-long service life, while reducing energy consumption, energy saving and environmental protection.
Q: Does the surgical shadowless lamp have an emergency lighting function?
A: Yes, the shadowless lamp has a built-in emergency lighting system to ensure that basic lighting can be maintained in the event of a sudden power outage to ensure surgical safety.
Q: How is the shadowless lamp installed?
A: The shadowless lamp supports ceiling installation and mobile installation, which can be flexibly selected according to the specific layout of the operating room.
Q: Does the surgical shadowless lamp have an anti-electric shock design?
A: Yes, the shadowless lamp adopts multiple anti-electric shock designs to ensure electrical safety during use.
Q: Does the shadowless lamp support remote control?
A: Some models support remote control function. Doctors can adjust the lighting parameters through the control panel in the operating room to improve surgical efficiency.
Q: How long is the maintenance and maintenance cycle of the shadowless lamp?
A: It is recommended to clean and inspect the shadowless lamp regularly. The specific cycle can be flexibly adjusted according to the frequency of use and environmental conditions of the operating room.
Q: Does the surgical shadowless lamp support customized services?
A: Yes, we provide customized services, and can customize the size, power and other parameters of the shadowless lamp according to the specific needs and layout of the operating room.
Q: What should I do if I encounter problems during procurement and use?
A: Our customer service team is always on call to provide you with professional consulting and after-sales services. No matter what problems you encounter during the purchase, installation or use process, we will wholeheartedly answer and provide support for you.
