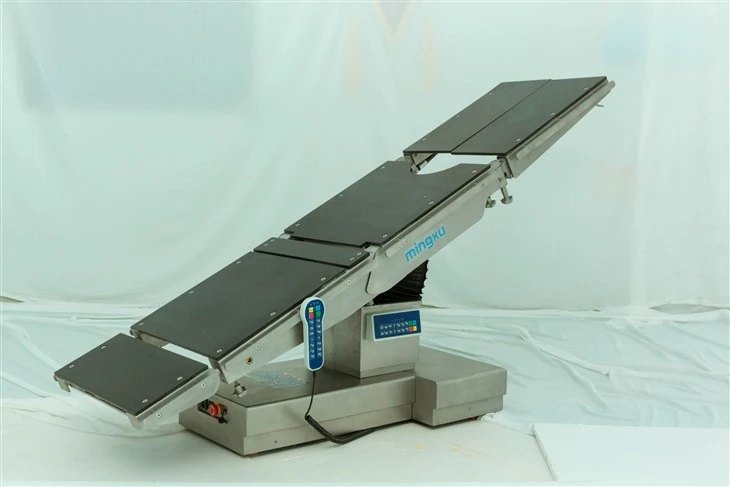

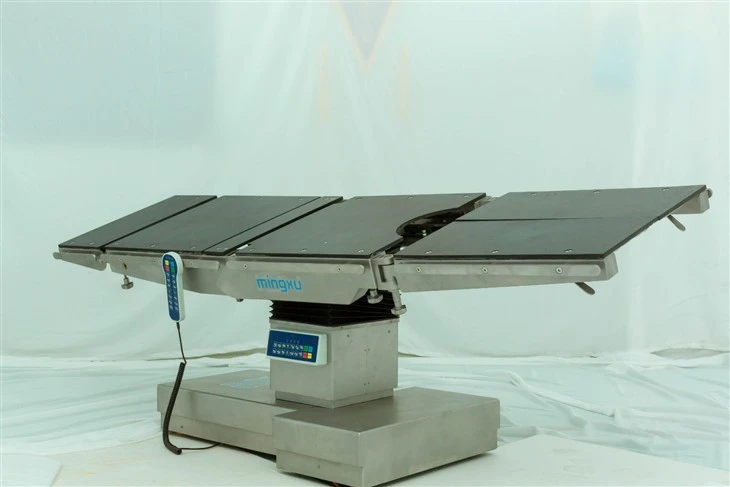

Products Description
1. Full Hydraulic Control System
Features high load-bearing capacity, low noise, and superior safety and reliability. It meets the diverse surgical requirements across various departments, including ophthalmology, neurosurgery, thoracic and abdominal surgery, gynecology, urology, ENT, and orthopedics.
2. Microcomputer & Dual Controller System
Equipped with a safety lock to prevent misoperations, ensuring maximum surgical safety. The table can be operated via two independent systems: a handheld controller and an auxiliary switch. If the handheld controller fails, the auxiliary switch can still operate the table without interrupting the surgery.
3. T-shape Base Design: Facilitates easy movement and close-standing for the surgeon. The base cover, lifting column cover, and side rails are all made of SUS304 stainless steel, making them easy to clean, acid/alkali resistant, and completely rust-proof. All stainless steel fittings and enclosures ensure a solid and stable structure.
4. Four-segment Articulating Tabletop
Consists of a head section, back section, seat section, and split leg section. All sections are made of X-ray transparent materials. An X-ray cassette tray is located beneath the tabletop for radiography.
5. Modular Design
The head and leg sections are detachable. The quick-lock mechanism significantly improves safety and accuracy, accommodating various surgical positioning needs.
6. Multi-layer Memory Foam Mattress
Provides excellent pressure distribution to reduce pressure injuries to the patient's extremities during prolonged surgeries, effectively lowering the risk of pressure ulcers. It is waterproof, stain-resistant, easy to clean, and anti-static.
7. One-Touch Reset Function
A single button press returns the operating table to its horizontal zero position, making it quick and convenient.
8. One-Touch Flexion/Reverse Flexion
Easily achieves the kidney bridge (kidney position) for surgical procedures.
9. Smart Electro-hydraulic Braking System
Engaging the brakes brings four points of the base into contact with the ground, ensuring stability and firmly securing the table on any flat or inclined surface.
10. Four Universal Casters: Allow for convenient movement and precise positioning of the operating table.
11. Built-in High-capacity Battery: Ensures uninterrupted operation of the table and features a low-battery warning indicator.
12. Versatile Accessories
Equipped with various functional attachments to meet the needs of different surgeries.
13. Longitudinal Translation
The tabletop can move longitudinally (front and back) by 300mm, eliminating blind spots and enabling full-position C-arm radiography.
14. Pneumatic Leg Sections
The split leg sections are operated by gas springs for effortless and convenient adjustment, with locking capability at any point during the stroke.
15. Auto Power-off Safety Feature
When the table is not in operation, the handheld controller's power is automatically cut off after 30 seconds to prevent accidental operation and enhance surgical safety.
Technical Parameters
| No. | Items | Parameters |
| 1 |
Tabletop Dimensions |
2100 mm × 550 mm(excluding side rails) |
| 2 |
Tabletop Height (Adjustable) |
690 mm - 990 mm (excluding mattress) |
| 3 |
Trendelenburg / Reverse Trendelenburg |
≥25° / ≥25° |
| 4 |
Left / Right Tilt (Electric) |
≥20° / ≥20° |
| 5 |
Head Section Articulation (Manual) |
Up ≥45° / Down ≥90° (Detachable) |
| 6 |
Back Section Articulation |
Up ≥75°/ Down ≥40° |
| 7 |
Built-In Kidney Bridge Stroke |
≥120mm |
| 8 |
Leg Section Articulation (Manual) |
Up ≥ 10°, Down ≥ 90°, Abduction ≥ 180° (Detachable) |
| 9 |
Max. Tabletop Translation (Electric) |
≥300 mm |
Product Configuration List
| No. | Items | Quantity | Unit |
|
1 |
Operating Table Bed Frame |
1 |
Set |
|
2 |
Mattress |
1 |
Set |
|
3 |
Anesthetic Screen Frame |
1 |
Pc |
|
4 |
Arm Rest Board |
2 |
Pcs |
|
5 |
Leg Support / Leg Holder |
2 |
Pcs |
|
6 |
Body Support Frame |
2 |
Pcs |
|
7 |
Retainers |
5 |
Pcs |
|
8 |
Body Straps |
2 |
Pairs |
|
9 |
Hand Controller |
1 |
Pc |
|
10 |
Power Cord |
1 |
pc |
|
11 |
Certificate of Conformity |
1 |
Set |
|
12 |
User Manual |
1 |
Set |
