1,Product Introduction
This is a high-end Five Function Electric Bed,Suitable for ICU ward care.
First, let me introduce to you the specific details and parameters of this bed.

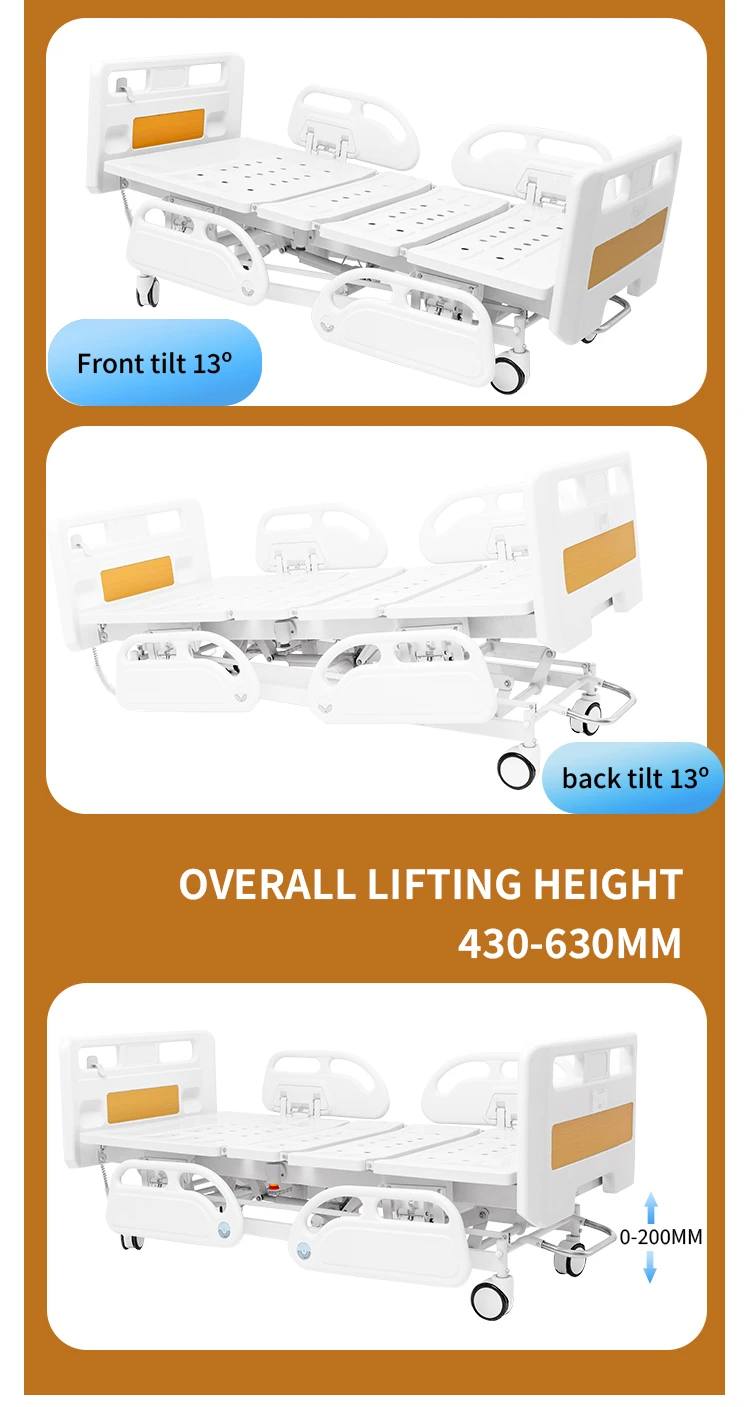

1.Adjustment range：Back tilt 70º±5º, leg tilt 40º±5º, whole bed horizontal lifting height 430-630mm, front and rear tilt 0-13º±2º, back and leg linkage function, dynamic load-bearing weight of bed: ≥240kg.
2.Bed board：It is made of 1.2mm thick cold-rolled steel plate molded in one step. It has a porous design for easy ventilation and anti-slip function. In addition to the molded design, the bed board has multiple reinforcing bones and 2 reinforcing ribs are added on the four sides of the bed board. The whole bed has high load-bearing capacity and beautiful appearance.
3.Head and foot boards：It is made of high-quality ABS reinforced plastic and blow-molded in one go. It has an arc-shaped European design with beautiful lines and a colored decorative sticker in the middle. The head and foot boards of the bed are hanging devices with novel design, simple operation and easy disassembly. It can also be used for CPR first aid to meet clinical needs. There is a patient information card slot on the outside of the foot board.
4. Back bed board: It adopts a support unloading structure and reinforced thickened carbon steel pipe to evenly disperse the pressure, enhance the safety performance of the back panel, and make the crank operation easier.
5.Motor：It adopts a four-motor control system and a multi-function hand controller with clear markings, simple and easy operation, free lifting and lowering, no noise, and a thrust of 4000-6000N..
6.ABS guardrail：Equipped with 4 European-style ABS guardrails, one-piece blow-molded, no deformation, no gaps, hidden storage at the bottom, does not take up space, with a booster, more convenient to lift, can be easily unscrewed when not in use, firm, reliable and durable.
Angle display：All four guardrails are equipped with angle displays, which can accurately display the angles of various parts of the bed when the bed is raised or lowered, making it convenient for medical staff to adjust to the optimal tilt angle and provide patients with a comfortable lying position.
Casters：It adopts central control luxury casters, which can be braked with one foot and are stable and reliable; the wheel surface is made of super polyurethane material, which is quiet, wear-resistant, anti-winding and never rust.
9. Infusion stand socket：There are four infusion stand sockets at the bedside.
10. Infusion stand:It adopts a hand-controlled telescopic double-stage design, which can adjust the height from 1000㎜ to 1600㎜. It is flexible to operate. It is made of stainless steel, lightweight, and has a symmetrical hook to meet clinical needs..

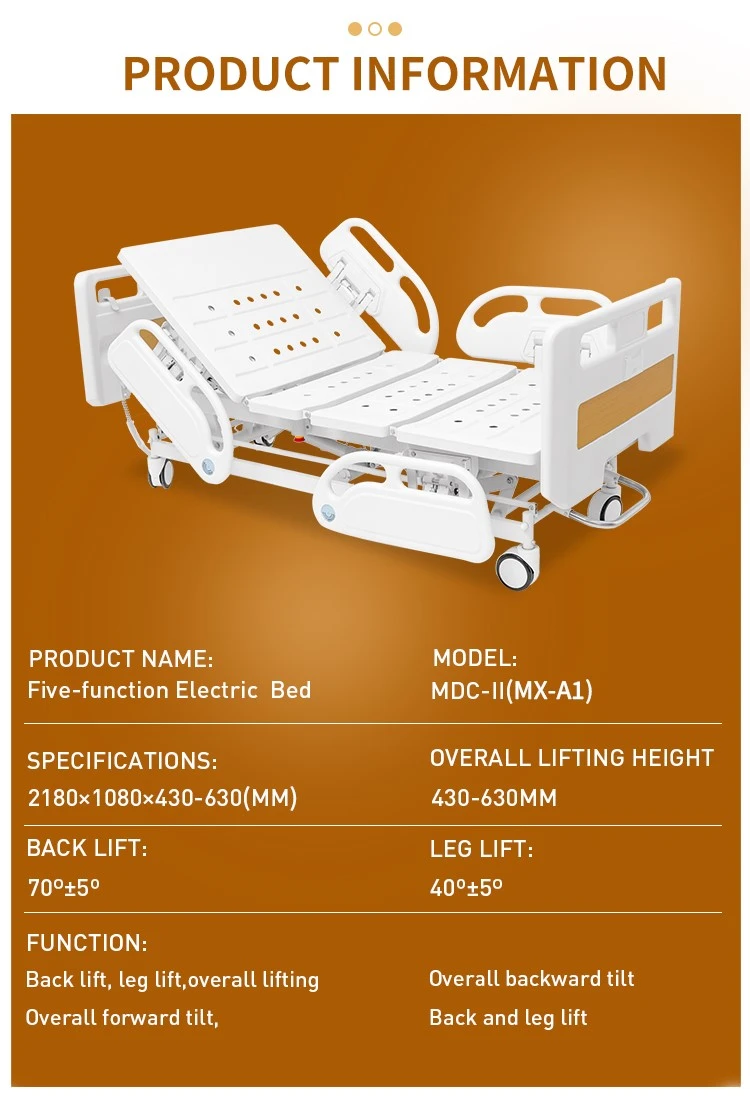

2.Product and function display

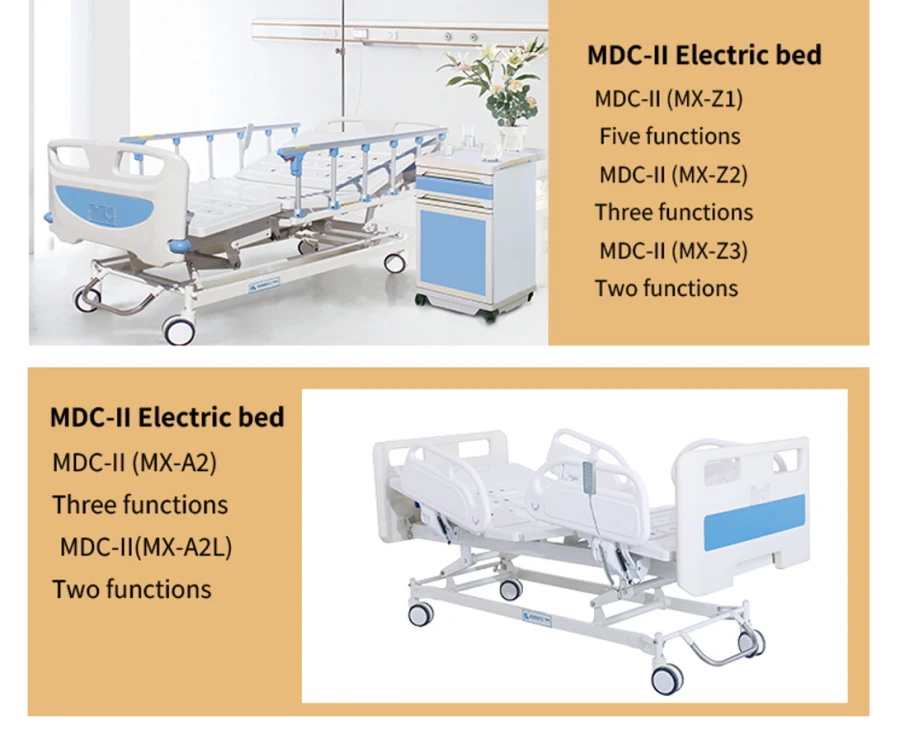

Other Electric hospital beds series
If you need other styles, functions and parameters, you can contact me directly!
Product Configuration List
|
NO. |
Name |
Unit |
Quantity |
Remark |
|
1 |
Bed |
set |
1 |
|
|
2 |
Headboard, footboard (blow molding) |
set |
1 |
|
|
3 |
Center Control Casters |
pc |
4 |
|
|
4 |
Electric Motor |
set |
4 |
|
|
5 |
Handheld Controller |
pc |
1 |
|
|
6 |
ABS Guardrail |
pc |
4 |
|
|
7 |
Angle display |
pc |
4 |
1 per guardrail |
|
8 |
Drainage hook |
pc |
2 |
1 on each side |
|
9 |
12cmMattress |
pc |
1 |
|
|
10 |
Telescopic IV stand |
pc |
1 |
|
|
11 |
Wooden box packaging |
pc |
1 |
3.Factory Introduction
4.FAQ
Q: What are the main functions of the Electric Five Function Nursing Bed?
A: The nursing bed has five major functions, including back lifting, leg lifting, Trendelenburg position (head low and feet high), Reverse Trendelenburg position (head high and feet low) and overall lifting to meet different nursing needs.
Q: What is the material of the head and foot of the nursing bed?
A: The head and foot of the bed are one-time injection molded with ABS technology, which is resistant to fading, aging and easy to clean, ensuring the durability and convenience of clinical use.
Q: What is the material and load-bearing capacity of the bed surface?
A: The bed surface is stamped with high-quality cold-rolled steel plate in one time, and is designed with vents to prevent bedsores. The bed surface can bear up to 250kg to ensure the safe use of patients.
Q: What is the quality of the motor of the nursing bed?
A: We use motors from well-known brands, which are durable and ensure the stable operation of the nursing bed.
Q: Is the nursing bed equipped with silent wheels?
A: Yes, the nursing bed is equipped with 5-inch double-sided silent wheels, which are durable and flexible to roll, without noise or shaking, and are easy to move in the ward.
Q: Is the nursing bed customized?
A: Yes, we provide customization services and can adjust the size, color and other configurations of the bed according to your specific needs.
Q: Is the nursing bed certified?
A: Yes, our nursing beds have passed CE, ISO13485 and other certifications to ensure the quality and safety of the products.
Q: What should I do if I encounter problems during the use of the nursing bed?
A: If you encounter any problems during use, you can contact our customer service team at any time. We will provide you with professional technical support and solutions to ensure that your use is smooth and unimpeded.
