Electric Hospital Bed

1,Product Introduction

This is a thrombolytic bed suitable for ICU wards.Technical parameter requirements are as follows：

1)Adjustment range：Back tilt 70º±5º; Leg tilt 40º±5º; Bed level lifting height 460-760mm; Front and rear tilt 0-14º±2º.

2)Three operating modes：Hand controller, inner and outer side controller of guardrail, and bed end controller with multiple operation modes, ensuring that body position can be controlled at any position of the bed to avoid cross infection.

3).Bed board：The bed board is made of 1.2mm thick cold-rolled steel plate molded in one step. It has a porous design, which is easy to breathe and has anti-slip function. In addition to the molded design, the bed board has multiple reinforcement bones and 2 reinforcement ribs on the four sides of the bed board. The whole bed has high load-bearing capacity and beautiful appearance..

4).Back bed board: Adopt support unloading structure, reinforced thickened carbon steel pipe, evenly disperse pressure, enhance the safety performance of the back plate, and make the crank operation easier.

5).Casters：It uses central control luxury casters, one-foot brake, stable and reliable; the wheel surface is made of super polyurethane material, which is quiet, wear-resistant, anti-winding, and never rusts..

6)Head and foot boards：The electric-controlled bedside and footboards are made of polypropylene resin material and are blow-molded in one piece. They are designed in an arc-shaped European style, beautiful and generous, with color decorative stickers in the middle. The bedside and footboards can be plugged in and out without shaking, and the operation is simple. They can also be used for CPR first aid to meet clinical needs; there is a patient information card slot on the outside of the footboard.

7)ABS guardrail：The four-piece guardrail is antibacterial and anti-ultraviolet. The height of the guardrail from the bed surface is ≥380mm. The guardrail has an electric control button to control the lifting and lowering functions of the bed. It can be positioned upright or horizontally. It is firm and reliable. The guardrail has a buffer when it is lifted and lowered, which extends the service life of the guardrail..

8)Angle display：The 4 guardrails are equipped with angle indicators, which can accurately display the angles of various parts of the bed when the bed is raised or lowered, making it convenient for medical staff to adjust to the best tilt angle and provide patients with a comfortable lying posture..

9)Motor：Well-known brand 4 sets of motor drive, multi-function hand controller, clear marking, simple and easy to understand operation, smooth lifting, no noise, thrust up to 4000-6000N.

10)Battery：Standard battery ensures that the posture function can be used in case of power

failure.

2,Technology：

1)Robot welding is used, and the welds produced basically eliminate the pores in the welds, and the welding quality is stable (the service life of robot welding is more than three times longer than that of traditional manual welding).

2)The bed surface is painted with double coating technology. After degreasing, rust removal, and environmentally friendly silane film agent treatment, it is electrostatically sprayed. The surface electrostatic spray material has a perfect appearance and strong chemical corrosion resistance and electrical insulation. The spray color can be selected. The spray material is environmentally friendly, non-toxic, antibacterial, and mildew-proof (with an authoritative agency test report); the coating surface is smooth and bright, does not fall off, does not rust, is anti-static, and has high adhesion. The company has its own spray production line equipment.

3,Product and function display

Product Configuration List

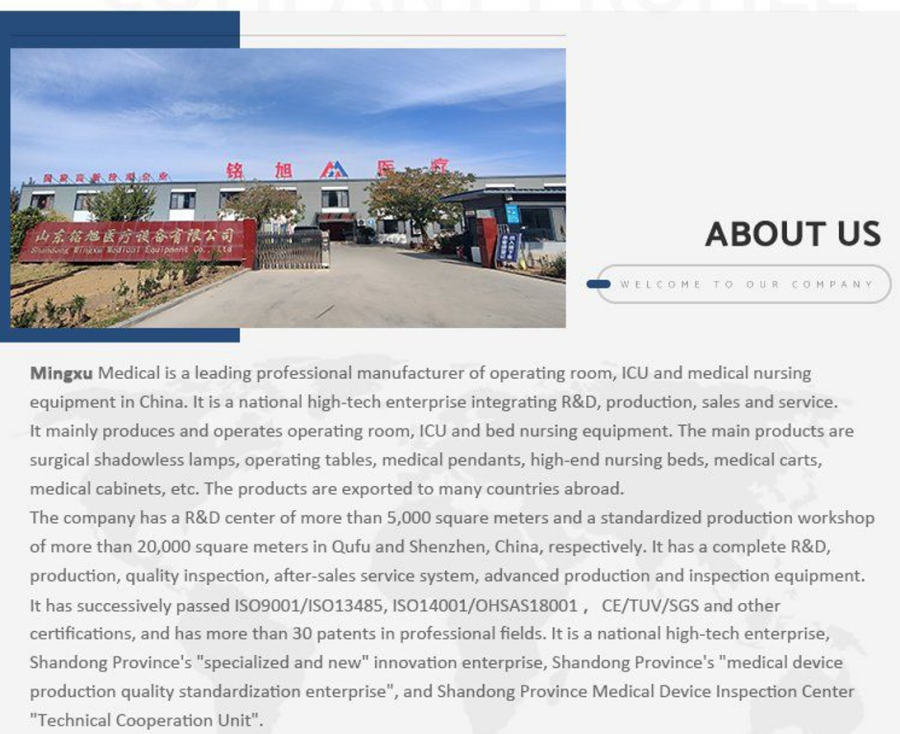

4,Factory Introduction

Factory real scene shooting：

Our factory has medical device production license, CE/ISO, free sales certificate and other qualifications.

Regarding delivery, the packaging is all wooden box packaging, air and sea transportation are supported. Some countries also have double clearance special lines.

So please rest assured to purchase.

FAQ

1. What functions does a multifunctional electric hospital bed have?

Multifunctional electric hospital beds usually have functions such as overall lifting, back tilting, leg tilting, front and back tilting, weighing, etc., and also support one-button reset, CPR emergency mode, etc. Through the electric control system, it can meet the patient's daily care, body position change, rehabilitation training and emergency medical needs.

2. What is the load-bearing capacity of the hospital bed?

The load-bearing range of this product is ≥240 kg.

3. What wards are the products mainly used for?

The hospital bed is mainly used in ICU wards

4. How to operate an electric hospital bed?

The hospital bed is equipped with a handheld remote control and a bedside control button, and the operation interface is marked with icons and text instructions. Press the corresponding button to adjust the head, foot, height, etc. of the bed. Long press for continuous action, and release to stop.

5. Is the adjustment speed of the bed controllable?

The adjustment speed of the bed is uniform and slow to avoid discomfort to the patient caused by rapid lifting and lowering. The speed cannot be adjusted manually. There are safety buffer mechanisms for turning over, tilting and other actions.

6. What are the safety designs of the electric bed?

- Anti-pinching design: A safety gap is reserved at the connection of the bed body to avoid pinching during adjustment;

- Overload alarm: The alarm is automatically triggered when the rated load is exceeded;

- Guardrail locking: The double-side guardrails can be folded and locked to prevent patients from falling out of bed;

- Braking system: The four-legged universal wheels are equipped with high-strength brakes to ensure that the bed is fixed and stable.
